7G

Cutting-Edge CBCT

  • posizione-distesa_FXrLuMz Maximising patient care
  • tecnologia Technological excellence
  • occhio_i2hzD03 Ultra-detailed multi-diagnostics
  • ergonomia-funzionalita Ergonomics and practicality

NEWTOM PRESENTS THE FIRST MULTI- SCAN BODY CBCT FOR EXTENSIVE CLINICAL APPLICATIONS.

Suitable for radiologists and orthopaedic, otolaryngology and dentistry specialists, NewTom 7G lets you capture accurate information on bone tissues - micro- structures included - to gain an in-depth understanding of the overall clinical picture. NewTom 7G, then, boosts the diagnostic capacity of the surgery and, at the same time, optimises analysis of treatment outcomes, all at low dosages and lower costs compared to conventional procedures.

Diagnostic images

  • Upper and lower limbs
  • Head & neck
generated_ARTI_SUP_E_INF.png.500x500_q85_crop_upscale

Diagnostic images

back-arrow Back

Upper and lower limbs

  • ELBOW
  • SHOULDER
  • ANKLE
  • WRIST
  • KNEE
  • HIP

Diagnostic images

back-arrow Back

Head & neck

  • DENTITION
  • OTORHINOLARYNGOLOGY
  • MAXILLOFACIAL

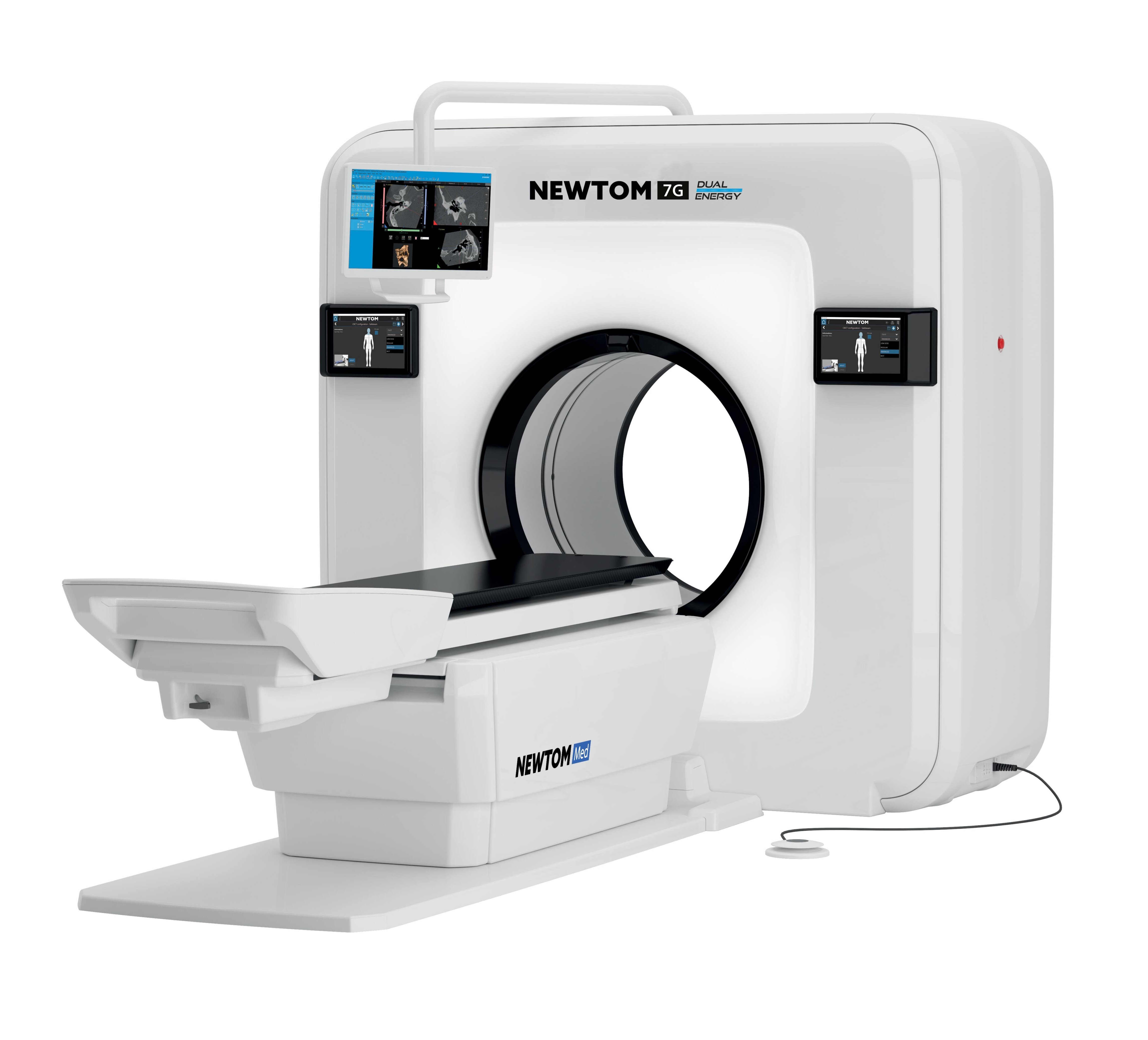

Featuring a large gantry aperture, the NewTom 7G is the most advanced CBCT device on the market.

NewTom 7G is suitable for very heavy patients thanks to a high-capacity powered patient table (max 215 kg).
At the same time NewTom 7G has all the functions and automatisms needed to adapt FOVs and X-ray doses to the patient's build (especially those of paediatric age). With a resolution of up to 90 μm, small complex structures such as the inner ear can be analysed with the utmost precision.

+ INFORMATION
micro-dettaglio.png__800x800_q85_subsampling-2

Applications for precision medicine.

NewTom 7G brings cutting-edge CBCT into all-new fields of application. It can be used to investigate innumerable anatomical areas in a wide range of clinical applications, both 3D with numerous FOVs and 2D (also sequentially).

Anatomical areas:

  • Maxillofacial: Full skull
  • Gnathology: Bilateral TMJ
  • Dentistry: Dentition
  • Orthopaedics: Cervical Rachis, Shoulder, Elbow, Hand, Wrist, Lumbar Spine Cross Sections, Hip, Knee, Heel, Foot, Ankle, Arthrograms
  • Otorhinolaryngology: Dacryography, Cochlear implant, Inner ear, Airways
+ INFORMATION
applicazioni.png__800x800_q85_subsampling-2

Highly advanced biomedical imaging with new high- potential image chain.

NewTom 7G has 15 FOVs, extendable to 30 with eXtra Functions. Each one is associated with 4 protocols: Low Dose, Regular, Enhanced and Best Quality. Nevertheless, doctors can create their own customised settings according to their specific needs.

funzionalita-evolute.png__800x800_q85_subsampling-2

Automated work flow plus the possibility of customising protocols.

NewTom 7G can perform numerous types of investigation, including those with intra-articular contrast agents (e.g. arthrograms with Cine-Scout positioning).
Ray2D allows for 2-dimensional assessment from multiple angles prior to 3D investigation.
The CineX serial radiography function, instead, lets users examine anatomical structures in motion and is particularly useful for studying joint mobility.
The Cine-Scout function allows dynamic, real-time examination directly on the machine for assessment of moving joints.

+ INFORMATION
range-diagnostico-ampliato.png__800x800_q85_subsampling-2

Automatic or manual exposure protocols for more accurate diagnosis.

NewTom 7G has 15 FOVs, extendable to 30 with eXtra Functions. Each one is associated with 4 protocols: Low Dose, Regular, Enhanced and Best Quality. Nevertheless, doctors can create their own customised settings according to their specific needs.
The Multi-Scout Vision view with 4-image acquisition provides precise info on the patient to allow selection of the most suitable FOV or framing adjustment via the keypad.

+ INFORMATION
controllo-totale.png__800x800_q85_subsampling-2

Low X-ray doses, always proportionate to patient build and clinical requirements.

In the case of surgical follow-ups or paediatric tests, adaptive FOVs, Ultra Rapid scan mode or the ECO Low Dose scan can be used to reduce the X-ray dose.
Pulsed emission CBCT technology activates the X-ray source only when necessary, thus limiting exposure. Moreover, SafeBeam™ technology automatically adapts emissions to the patient's anatomical characteristics, eliminating any risk of overexposure. Furthermore, radiologists can modulate emissions manually to reduce the dose further.

+ INFORMATION
sicurezza-paziente.png__800x800_q85_subsampling-2

Maximum connectivity and integration thanks to the modern systems adopted by NewTom.

Work flow and clinical- diagnostic work become ever-simpler and higher-performing.

+ INFORMATION
connettivita.png__800x800_q85_subsampling-2

To ensure maximised workflow smoothness, the Di.V.A. digital virtual assistant provides data and usage statistics to plan workloads and maintenance.

The Easy Check tool also ensures continuous remote technical monitoring, facilitating maintenance scheduling and providing early resolution of any issues.

+ INFORMATION
newtom_hr_diva_rid.png__800x800_q85_subsampling-2

Features and specs

  • In-depth detail Big picture
  • Unmatched power
  • High-End Performance
  • Broader diagnostic range
  • Total control
  • Safety for the patient
  • Complete Connectivity
  • Di.V.A. e Easy Check

In-depth detail, Big picture

lettino_servocomando.png__700x510_q85_subsampling-2 (1)

Servo-controlled patient table

The fully motorized patient table (Patent Pending) provides considerable excursion, the minimum height of 56.5 cm ensuring easy access at all times.
Extremely precise three-dimensional table movement ensures perfect patient positioning patient with respect to each FOV.
Limits the risk of artifacts caused by uncontrolled movement. It also ensures simple, accurate alignment of the FOVs, making results more certain and weighting the X-ray exposure.

Maximum total load capacity is 215 kg.

ampio-gantry.png__1280x700_q85_subsampling-2

Large gantry

The large gantry opening increases the scope for diagnosis and makes positioning easier. Openings on both sides prevent patients from experiencing claustrophobia, while access from the rear also allows use by wheelchair patients. Furthermore, the advanced (Patented) kinematic system allows for complete, fast rotation. The backlit gantry area provides soft lighting, making the time in the X-ray room more pleasant.

posizionamento-ottimale.png__700x510_q85_subsampling-2

Excellent positioning

The prone or supine position is ideal for successful examination outcomes as it reduces the artifacts caused by patient movement; it is particularly suitable for elderly persons with reduced mobility and indispensable in the case of sedated or trauma patients.

Unmatched power

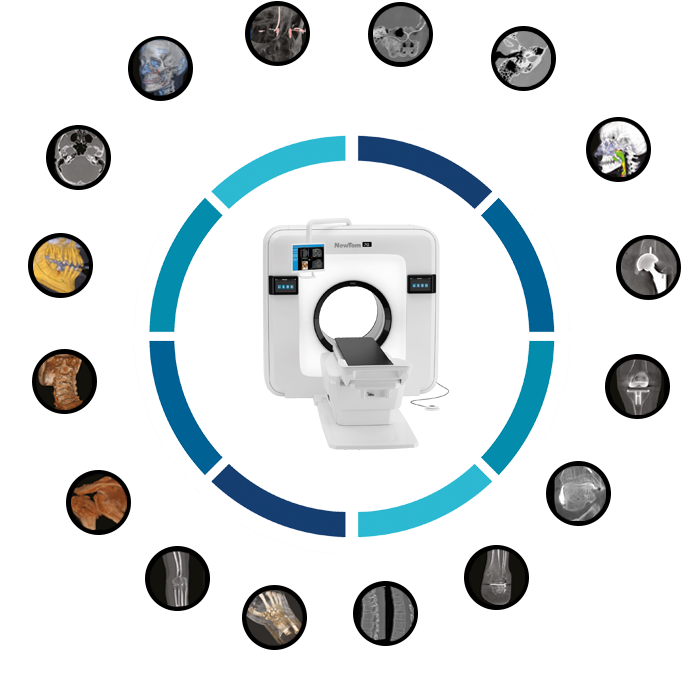

potenziale-inedito-en.png__1280x700_q85_subsampling-2

NewTom 7G lets users create - all on just one device - ultra- high definition images to diagnose the micro-structures of the ear or hairline fractures in complex joints. It can also be used to assess post-surgery outcomes (with minimisation of artifacts caused by bone-articular prosthesis or other osteo-synthetic devices such as pins, even where extensive).

Broader diagnostic range

3D Esteso

Adaptive FOVs - from a minimum of 4x4 cm to a maximum diameter of 29 cm and lengths of up to 62 cm - allow the area of interest or a portion of it to be examined (taking the patient's build into account).

ortopedia.jpg__700x510_q85_subsampling-2

Osteo-articular study with multiplanar view.

ORTHOPAEDICS

In addition to shoulder, hip, spine, small bones and joints, NewTom7G is highly useful for assessing extremities. If necessary, use a contrast agent; NewTom 7G also lets you investigate joints in motion. Advanced NNT software functions provide access to comprehensive reports.

otorinolaringoiatria.jpg__700x510_q85_subsampling-2

Ear and airways volume analysis.

OTORHINOLARYNGOLOGY

Dynamic examination of the inner ear along non- orthogonal planes to diagnose diseases of the ossicular chain, stapes platina, semicircular canals, cochlea and adjacent structures. The lying down position aids airway investigation for sleep apnoea treatment while NNT software features a special instrument for complete volumetric assessment of the case.

odontoiatria.jpg__700x510_q85_subsampling-2

Dental-Maxillofacial and bilateral TMJ analysis.

DENTISTRY, IMPLANT AND ORTHOGNATHIC SURGERY

Dual view and symmetric analysis of the temporomandibular joints. The Sharp 2D function produces an image dataset consisting of Latero-Lateral and Antero-Posterior Panoramic and Teleradiography images; cephalometric studies and orthodontic rehabilitation work can be performed. Maxillofacial surgery planning with implant simulation and post-op follow-up.

Total control

extra-functions.jpg__700x510_q85_subsampling-2

eXtra Functions

The eXtra FOV function lets users extend the field of view longitudinally to analyse anatomical structures such as the spine and limbs, up to 17x62 cm and 29x56 cm. This is an automated protocol that, via patient table movement, groups together from 2 to 4 FOVs in sequence in a single exam. Multi-scan is automatic and can be modulated according to clinical requirements.
cine-scout-mode.png__700x510_q85_subsampling-2

Cine-Scout Mode

The 22” touch-screen can be used to control the examination flow and display anatomical structures in motion in real time. In Cine-Scout mode, then, it's possible to set up a sequential X-ray examination for dynamic analysis. X-ray emission is activated via an external, cable-linked foot control.
monitoraggio-remoto.png__700x510_q85_subsampling-2

Remote Monitoring

Throughout the various stages of the examination, patients are monitored via the on-board video camera and an intercom establishes a reassuring line of direct communication that can also be used to give patients instructions when necessary.
centratura-guidata

GUIDED ALIGNMENT

Laser guides simplify patient positioning, ensuring the area of interest is aligned perfectly. Multi-Scout Vision lets users observe the maximum field of view for each application from 4 perspectives before selecting the most suitable, more restricted FOV - properly aligned on the region of interest only - to further limit the X-ray dose.

multi-consolle

MULTI-CONSOLE TOUCH SCREENS

The 10" control touch-screens used to guide alignment and set up the examination are located on board the machine, making them easily accessible. A simple, user-friendly interface allows the examination type to be selected in just a few steps. It's possible to choose a set-up that has from 2 to 4 consoles, with installation on both sides of the gantry, front or rear.

Safety for the patient

ADAPTIVE LOW DOSE CBCT

NewTom 7G is equipped with four 3D protocols that let you adapt the X-ray dose to actual diagnostic needs.
With the Low Dose protocol, the X-ray dose can be reduced by up to 80%: the equivalent of a Ray2D radiograph with the same field of view.

eco-scan

3D LOW DOSE

The NewTom 7G CBCT Low Dose protocol reduces scan times to as little as 7.2 s, with a beam emission time of just 1.4 s. This ultra-fast ECO scan mode is ideal for reducing the X-ray dose (e.g. post-operative checks and paediatric applications).

safe-beam

ADAPTIVE EXPOSURE CONTROL

SafeBeam™ technology automatically adapts CBCT and CineX emission parameters to the framed anatomical area and adapts dose to patient build (both adult and child).

ray-2d

2D RADIOGRAPHY

The Ray2D function lets users perform 2D X-ray examinations with a 30x30 detector on various areas from multiple projection angles, selectable at 5° intervals. Exposure parameters (kV e mAs), and therefore the dose, can be adapted to effective requirements.

adaptive_fov

ADAPTIVE FOVs

The NewTom (Beam Limited Patented) collimation used to obtain modular FOVs and precision-select the area to be exposed for CBCT examinations. This permits a lower X-ray dose, especially in paediatric applications.

craniostato-inclinabile

TILT-ADJUSTABLE HEAD SUPPORT

The carbon fibre headrest (Patent Pending) for Head & Neck examinations can be angled at up to 45°: this allows head positioning to frame the ear perfectly, avoiding any irradiation of the lens to further reduce the effective dose and protect radio-sensitive organs. Lastly, patient comfort is ensured by a soft cushion.

Complete Connectivity

NNT: Certified Software

NNT has been awarded ISDP© 10003 certification, an international standard for assessing compliance with EU Regulation 2016/679 concerning the protection of individuals' personal data processing rights.

VIRTUAL CONSOLE

The required X-ray settings can be conveniently managed on the machine via a 10" multi-console and/or 22" touch-screen. They can also be managed remotely via a virtual control panel for PCs.

REMOTE ASSISTANCE AND I.O.T.

By connecting the device to the Internet, it is possible to carry out remote technical assistance and monitor operation with Di.V.A. and Easy Check from an I.o.T. perspective. The device will send information on its own performance and any critical issues.

3D/2D VIEWER

Examinations can be shared with colleagues and patients by supplying the Viewer programme directly on CD, DVD or a USB storage device.

1:1 PRINT

Complete and flexible report system for storing and sharing colour reports on photographic paper or grey scale reports on X-ray-equivalent transparencies.

OTHER ACQUISITION DEVICES

Compatibility with TWAIN and DICOM 3.0 standards ensures NNT software can manage images from other 2D/3D image acquisition devices, such as video cameras, sensors, PSP and CBCT scanners.

MULTI-STATION DISPLAY AND PROCESSING

Image storage on a shared database on a local network, accessible from any workstation and iPad (2D only). Management of multiple archives and access to password- protected data.

RIS/PACS

IHE compliant system that allows communication with RIS/PACSsystems and DICOM printers. Complete services available: Print, Worklist, Storage Commitment, MPPS and Query/Retrieve.

SURGERY MANAGEMENT SOFTWARE

An open system designed for fast, efficient interfacing with the main surgery management software solutions via various standard (VDDS, TWAIN) and/or proprietary (NNTBridge) modes.

SPECIALIST SOFTWARE

Volumetric and 2-dimensional images, like videos processed with the CineX function - which are compatible with DICOM 3.0 (IHE) standard - can easily be shared via the NNT Viewer or printed in 1:1 scale.

3D PRINTERS AND MILLING MACHINES

Software modules are available to segment the reconstructed volume and export the surfaces needed to create 3D models (which can underpin planning and treatment) to STL format.

3D OPTICAL SCAN

Prosthetically guided planning thanks to integration (via the dedicated software module) of STL format data from optical, intraoral or laboratory scanners with volumetric data.
