Caratteristiche

NewTom 7G is the Multi-Scan Body CBCT that revolutionises veterinary radiology, offering ultra-high definition imaging with resolution up to 90 µm and adaptive fields of view from 4x4 cm to 29x62 cm. Ideal for examining complex areas such as joints and micro-fractures, it allows both static (Ray2D) and dynamic (CineX) investigations to be performed also on moving structures.

7g-vet-caratteristiche-1

7g-vet-caratteristiche-2

  • Maximum load capacity

    The motor-driven table, with a load capacity of up to 215 kg, ensures optimal positioning of animals and facilitates the examination of patients of different sizes. The NNT software allows for customised management of diagnostic protocols, with pre-settings that can be adapted to specific clinical needs.

  • Automatic radiation adjustment

    The SafeBeam™ technology automatically adjusts the radiation dose, ensuring patient safety and optimal image quality.

  • Multiple applications

    Thanks to its advanced protocols, NewTom 7G is perfect for applications ranging from myelography to angiography, making it the ideal tool for complete and reliable diagnoses.
    From detailed viewing of microstructures to analysis of entire anatomical districts, NewTom 7G is the tool with the best potential for today's veterinary clinics.

Dual Energy: the new frontier of CBCT imaging

7g-vet-dual-energy
The NewTom 7G Dual Energy system uses two different radiant energies to capture complementary image sets of the same anatomical area - improving diagnostic accuracy and tissue characterisation.

This innovative approach allows the chemical composition of tissues to be characterised, improving tissue distinction between cortical bone, trabecular bone and soft tissues.

Quantitative tests show a marked improvement in HU accuracy, contrast resolution, and image homogeneity compared to single-energy scans. Additionally, advanced algorithms automatically correct movement-induced artifacts, ensuring superior image quality even in challenging conditions.

Thanks to the dedicated software, energy levels can be selected in real time to obtain detailed and customised information during viewing. Virtual monochrome images (VMI) and colour-coded images facilitate tissue segmentation and timely disease identification.

Advanced functions

NewTom 7G integrates the most advanced diagnostic functions, guaranteeing performance tailored to every veterinary clinical need. Thanks to the motor-driven patient table, touch-screen monitor and customisable protocols, each examination step can be optimised to obtain superior quality volumetric and two-dimensional images. The CineX system, with serial imaging, also allows moving body structures to be examined in real time, expanding diagnostic possibilities.
7g-vet-eng-funzionalita

SafeBeam™ technology

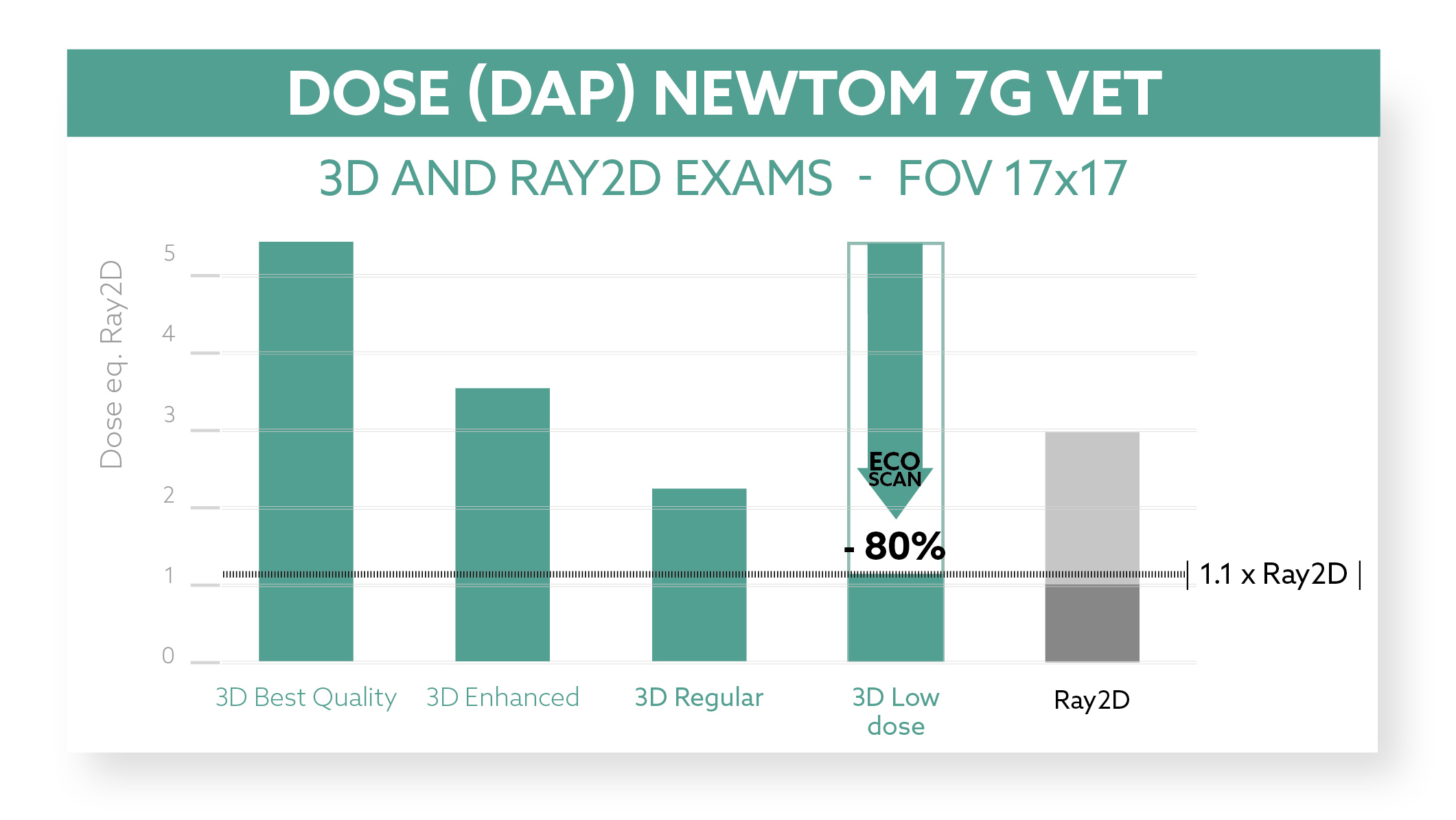

SafeBeam™ technology automatically adapts the radiation dose to the size and type of patient, minimising exposure without any impact on image quality. This ensures the highest level of safety even during prolonged examinations or for scans performed on small-sized animals.
7g-vet-multi-scout

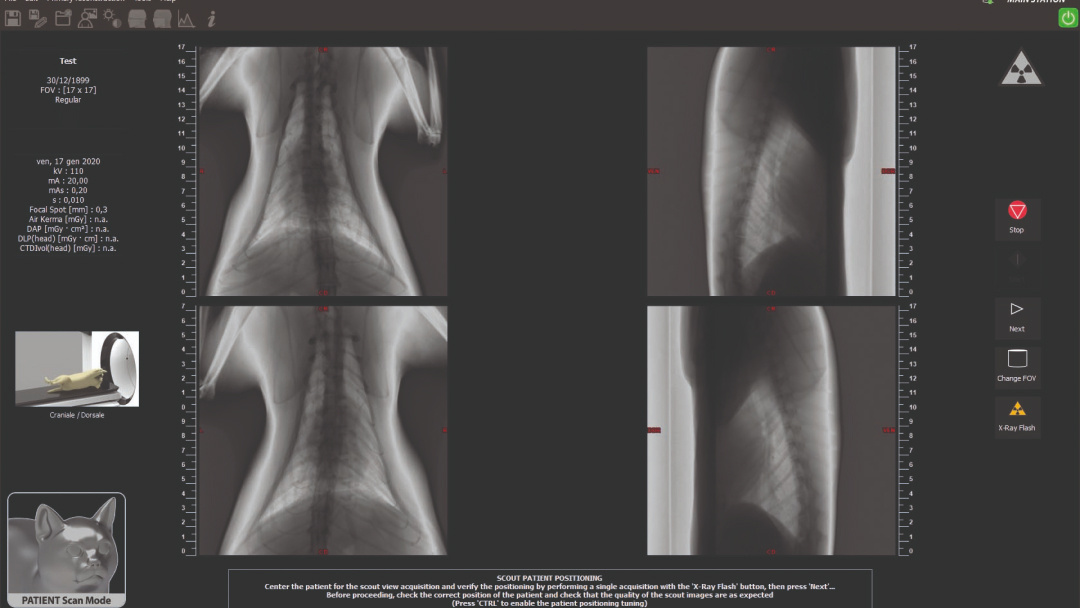

Multi-Scout Vision

Total control is ensured by the Multi-Scout Vision system, which allows perfect alignment of the area of interest, and by the multi-touch-screen consoles, strategically positioned on-board the machine. The operator can manage every capturing phase - from radiological parameters to real-time viewing, ensuring rapid, reliable diagnoses, always tailored to the specific needs of each patient.

Complete diagnostics with 2D and 3D scans

7g-vet-eng-diagnosi-completa

NewTom 7G offers a complete range of advanced features for veterinary diagnostics, integrating ultra-high definition 2D and 3D scans. The Ray2D function allows a static and two-dimensional preliminary assessment to be carried out - ideal for quickly identifying anomalies or directing the investigation to specific areas. With CineX dynamic imaging, moving internal structures can be examined, such as joints or soft tissues, ensuring in-depth understanding of body dynamics.

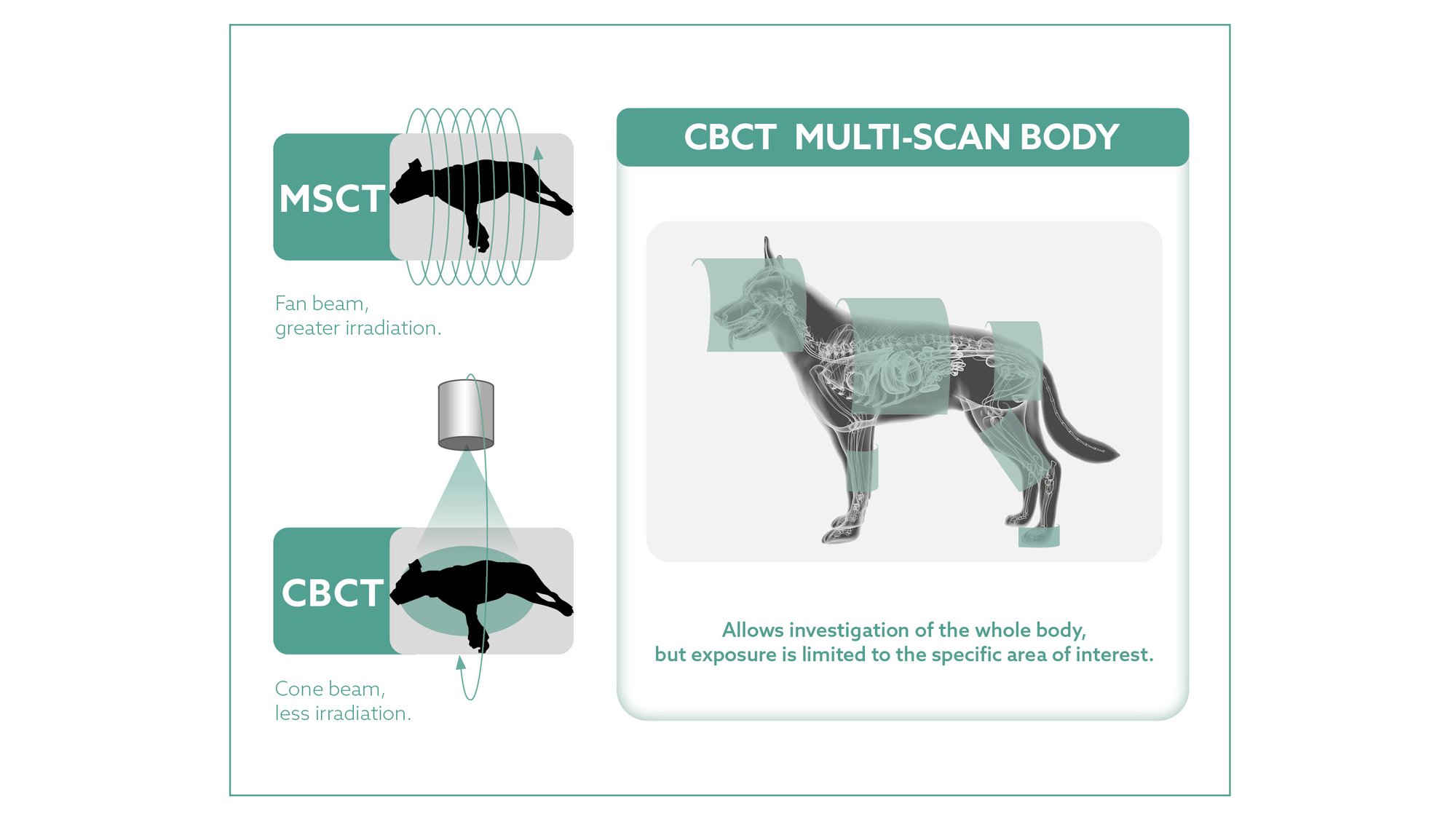

For more complex examinations, Multi-Scan Body CBCT technology generates detailed 3D volumetric images with resolution up to 90 µm, covering large or localised anatomical districts. Adaptive fields of view (FOV) provide the flexibility required to examine the entire patient body or focus on specific areas, such as hairline fractures or osteochondral lesions.

Each test is optimised according to customisable protocols, with options that include low-dose scans, high-resolution imaging, and sequential acquisition modes. With its combination of 2D and 3D scanning options, NewTom 7G guarantees a complete and accurate diagnostic path, offering specialists clear and reliable results for every type of clinical examination.

Optimal lying-down position

7g-vet-posizione-ottimale
NewTom 7G è progettato per garantire il massimo comfort del paziente e la massima precisione diagnostica grazie al lettino motorizzato a movimento fluido e alla gestione avanzata del posizionamento disteso. La capacità di carico fino a 215 kg permette di accogliere animali di diverse taglie, assicurando sempre stabilità e sicurezza.

Il lettino servo-assistito si regola su tre assi, consentendo movimenti precisi e una centratura ottimale rispetto al campo di vista selezionato (FOV). L’ampia superficie e il materassino pieghevole garantiscono un supporto confortevole, riducendo al minimo il rischio di movimenti indesiderati durante l’esame. Le guide laser e il sistema di centratura Multi-Scout Vision assistono l’operatore nel posizionamento ideale, evitando riposizionamenti e ottimizzando i tempi di acquisizione.

Con NewTom 7G, la corretta posizione distesa è la chiave per risultati diagnostici sempre affidabili e accurati.
